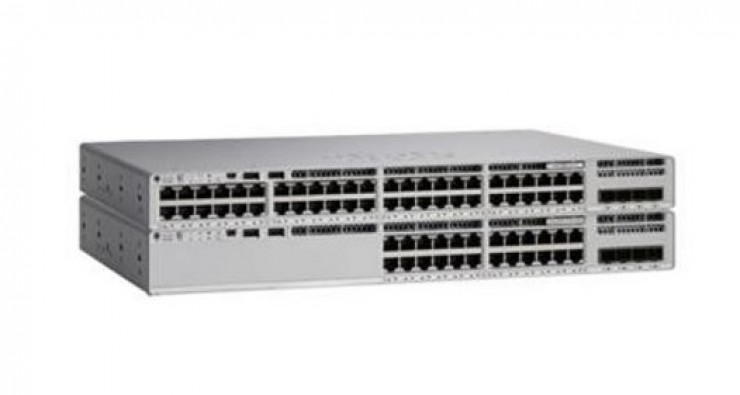

Model: C9200-48T-A - Cisco Switch Catalyst 9200 Detail: Catalyst 9200 48-port Data Switch, Network Advantage
C9200-48T-A Specification |
|
Downlinks total
10/100/1000 or PoE+ copper ports |
48 ports data |
Uplink
configuration |
Modular uplink options |
Default primary
AC power supply |
PWR-C6-125WAC |
Fans |
FRU redundant |
Software |
Network Advantage |
Chassis
Dimensions |
1.73 x 17.5 x
13.8 in 4.4 x 44.5 x 35.0
cm |
Virtual Networks |
4 |
Stacking
bandwidth |
160 Gbps |
Total number of
MAC addresses |
32,000 |
Total number of
IPv4 routes (ARP plus learned routes) |
14,000 (10,000
direct routes and 4,000 indirect routes) |
IPv4 routing
entries |
4,000 |
IPv6 routing
entries |
2,000 |
Multicast routing
scale |
1,000 |
QoS scale entries |
1,000 |
ACL scale entries |
1,600 |
Packet buffer per
SKU |
6 MB buffers for
24- or 48-port Gigabit Ethernet models |
Flexible NetFlow
(FNF) entries |
16,000 flows on
24- and 48-port Gigabit Ethernet models |
DRAM |
4 GB |
Flash |
4 GB |
VLAN IDs |
4096 |
Total Switched
Virtual Interfaces (SVIs) |
1000 |
Jumbo frames |
9198 bytes |
Wireless
bandwidth per switch |
Up to 48 Gbps on
24-port and 48-port Gigabit Ethernet model |
Switching
capacity |
176 Gbps |
Forwarding rate |
261.9 Mpps |
Mean time between
failures (hours) |
571,440 |
